the pivotal role of photovoltaic molded case circuit breaker in ensuring solar energy system safety

The Photovoltaic Molded Case Circuit Breaker (PVMCCB) holds a crucial position in the realm of solar energy systems. Its role is not just limited to circuit protection but extends to enhancing the overall safety and reliability of photovoltaic (PV) installations. In this article, we delve into the significance and functionalities of PVMCCB, highlighting its unique features and applications.

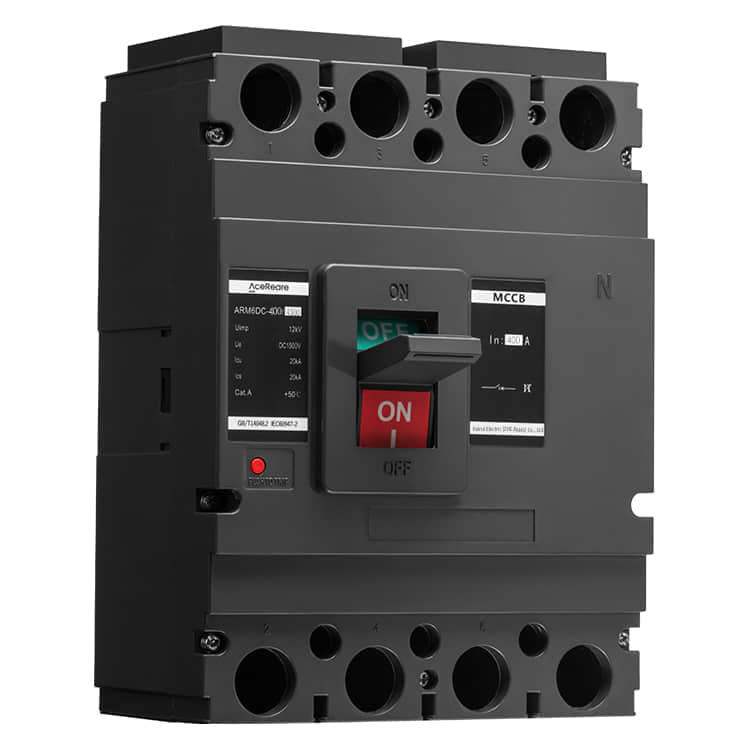

Photovoltaic Molded Case Circuit Breaker

PVMCCB is a specialized type of circuit breaker designed to cater to the specific requirements of PV systems. Its molded case construction offers superior durability and resistance to environmental factors, making it suitable for outdoor installations. The breaker’s compact design also ensures easy integration into PV systems, without compromising on performance or safety.

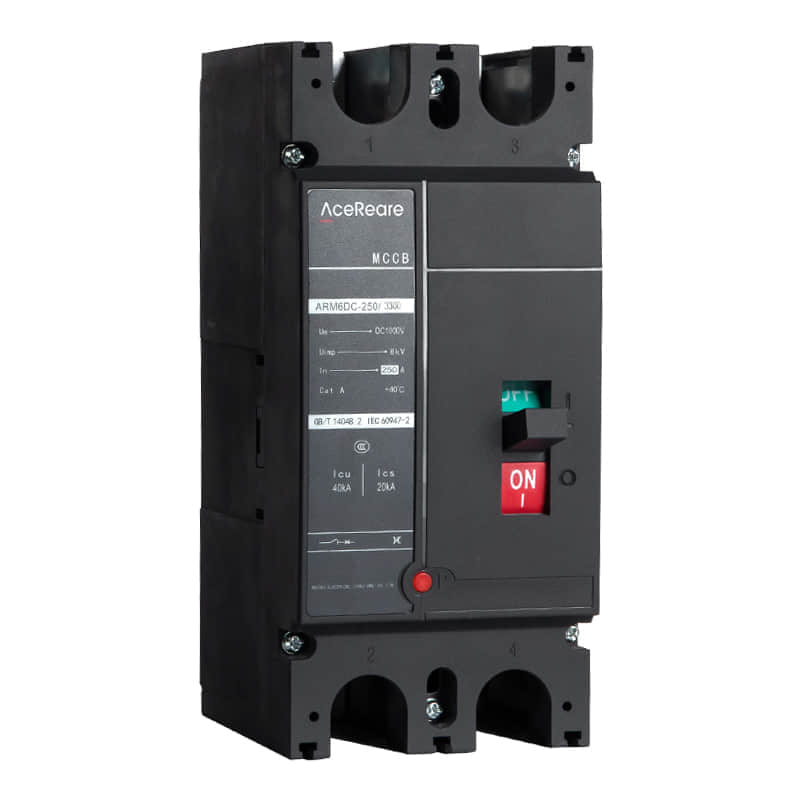

Photovoltaic Molded Case Circuit Breaker

The core function of PVMCCB is to monitor and control the flow of electrical current in PV circuits. It is capable of detecting abnormalities such as overloads, short circuits, or ground faults and swiftly interrupting the circuit to prevent damage to equipment or the occurrence of fires. This rapid response time is crucial in PV systems, where high voltages and currents are involved, and the consequences of unchecked electrical faults can be catastrophic. Moreover, PVMCCB is equipped with additional features that enhance its safety capabilities. For instance, it may incorporate arc fault detection, which can identify and extinguish arcs that might otherwise ignite surrounding materials. It may also have thermal magnetic trip units that combine thermal and magnetic protection to provide enhanced sensitivity and accuracy in fault detection.

Photovoltaic Molded Case Circuit Breaker
