the essence of moulded case circuit breaker manufacturing

The Moulded Case Circuit Breaker (MCCB), a pivotal component in electrical safety, is a compact yet robust device designed to safeguard circuits from overcurrent conditions. At the heart of this technology lies a unique combination of engineering precision and material science.

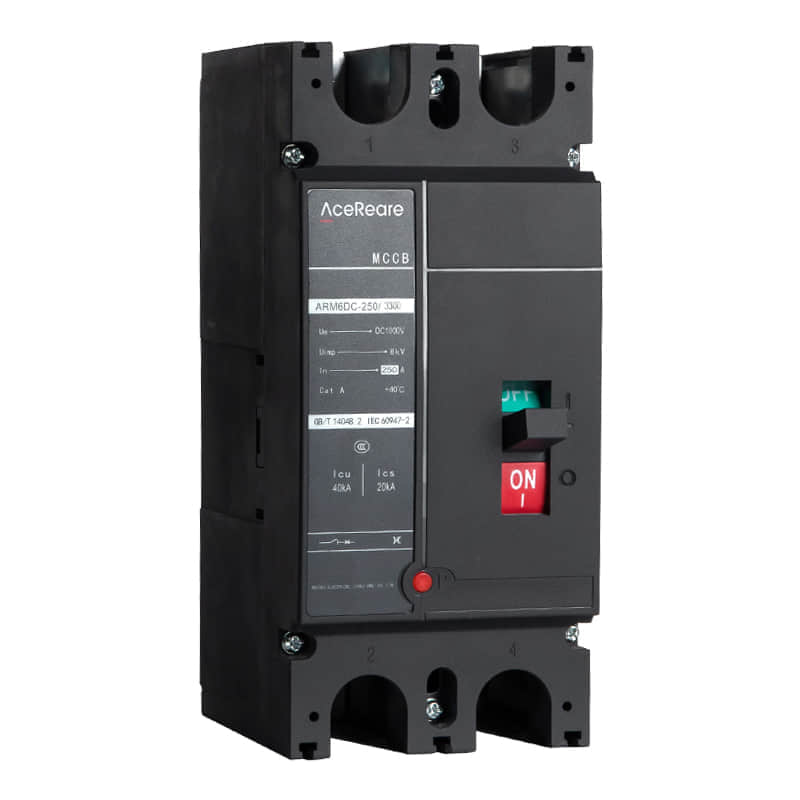

Moulded Case Circuit Breaker Manaufacture

The MCCB’s primary function is to interrupt a circuit when it is overloaded or experiences a short circuit, preventing potential damage to the system and safeguarding personnel. This is achieved through a tripping mechanism that reacts to the level of current flowing through the device. When this current exceeds a pre-set limit, the MCCB automatically trips, breaking the circuit and preventing further damage.

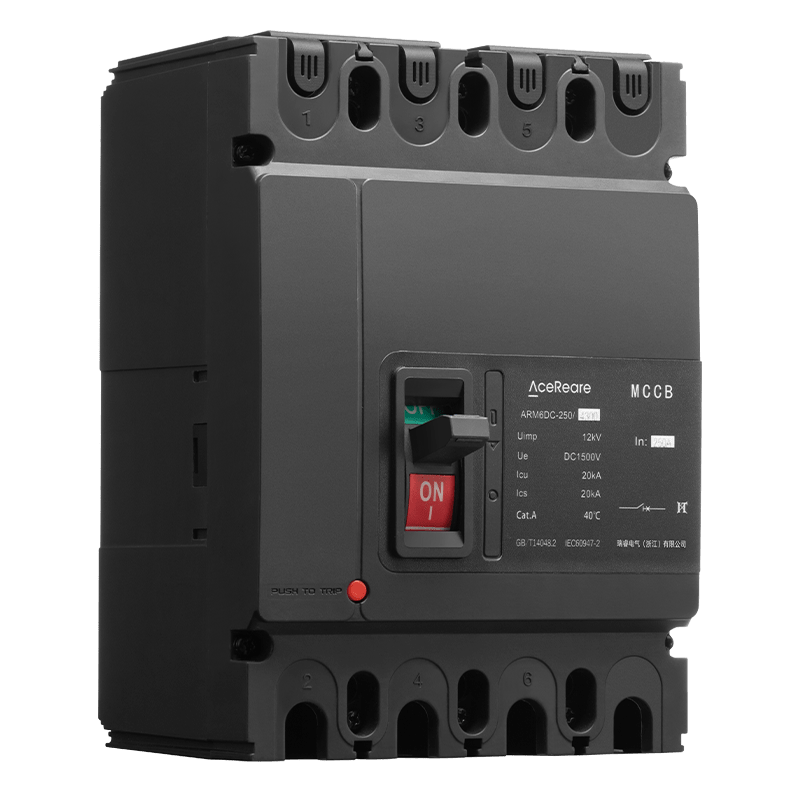

Moulded Case Circuit Breaker Manaufacture

The manufacturing of MCCBs is a highly specialized process, requiring meticulous attention to detail and exacting standards. The first step in this process involves selecting high-quality materials that can withstand the rigors of the electrical environment. The casing, or moulded case, must be made from a heat-resistant and flame-retardant material, ensuring both its durability and the safety of the end user. Inside this casing, the heart of the MCCB—the breaker—is precision-engineered. This component must be designed to respond swiftly and accurately to changing current levels, ensuring reliable circuit protection. The manufacturing process involves complex assembly techniques, often using automated systems to ensure consistent quality and performance.

Moulded Case Circuit Breaker Manaufacture
