lded case circuit breaker: a crucial device for electrical safety

In the world of electrical systems, safety is paramount. Molded Case Circuit Breakers (MCCBs) are a crucial component that ensures the reliability and safety of electrical circuits. These devices, often referred to as plastic circuit breakers, play a vital role in preventing electrical fires and damage by interrupting the flow of current in the event of overloads or short circuits.

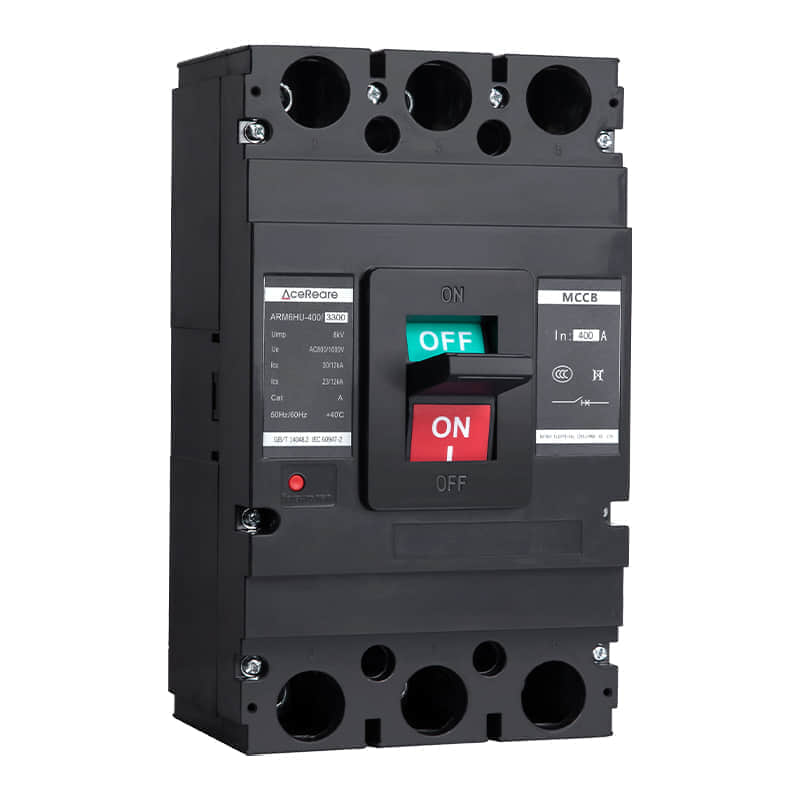

Molded case circuit breaker

The Molded Case Circuit Breaker is a compact device with a plastic casing that encloses its internal components. This casing not only provides protection from dust and moisture but also acts as an insulator, preventing electrical shocks. The breaker is designed to trip or interrupt the circuit when the current exceeds a pre-set limit, thus preventing damage to the wires, cables, and connected equipment.

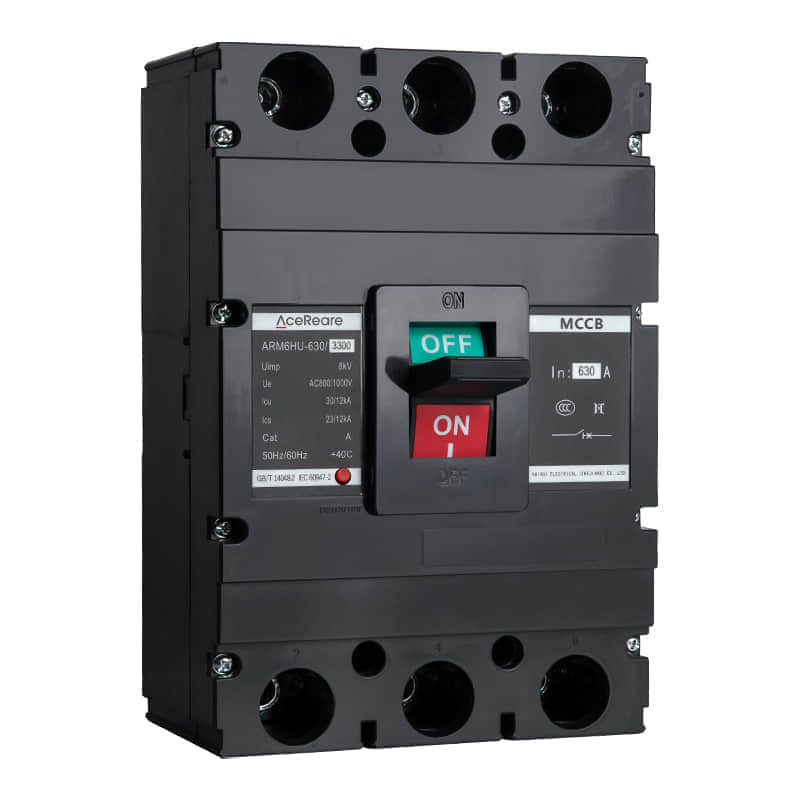

Molded case circuit breaker

The operation of an MCCB is relatively simple yet effective. When the current flowing through the circuit exceeds the rated capacity of the breaker, the internal mechanism trips, effectively breaking the circuit. This action prevents further damage and minimizes the risk of fire. Once the fault is rectified, the breaker can be manually reset, restoring power to the circuit. MCCBs are available in a wide range of ratings and configurations, making them suitable for a diverse array of applications. From residential wiring to industrial automation systems, these breakers offer a cost-effective and reliable solution for circuit protection. They are often used in panelboards, distribution boards, and motor control centers, where they protect critical equipment and ensure the continuity of power supply.

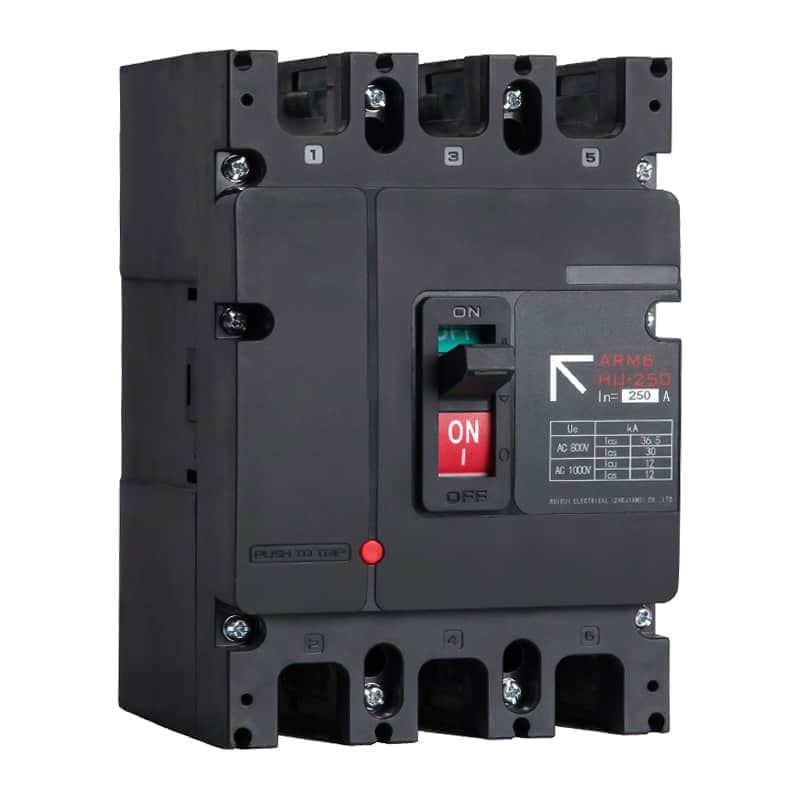

Molded case circuit breaker
