A 12V DC Relay is a type of electromechanical switch that is commonly used in electronic circuits to control the flow of electricity. It is designed to operate on a 12V DC (direct current) power source and is widely used in various applications, including automotive systems, home appliances, and industrial automation. In this article, we will explore the working principles, types, applications, and advantages of 12V DC relays.

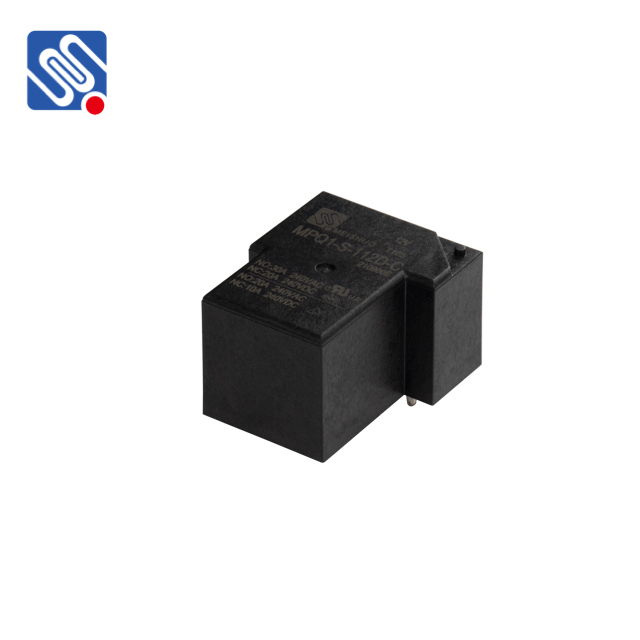

What is a 12V DC Relay? A 12V DC relay is an electrical switch that uses an electromagnet (coil) to control the opening and closing of one or more sets of contacts. When a 12V direct current is applied to the coil, it generates a magnetic field that causes the switch to either open or close. This action allows the relay to control the connection of circuits without directly connecting the controlling signal to the power circuit. Relays can control both low and high voltage circuits with a relatively low input, making them highly efficient for controlling devices that require a larger power supply. For example, a relay can switch on a 230V AC light using a 12V DC signal from a microcontroller, without the two circuits directly interacting.
