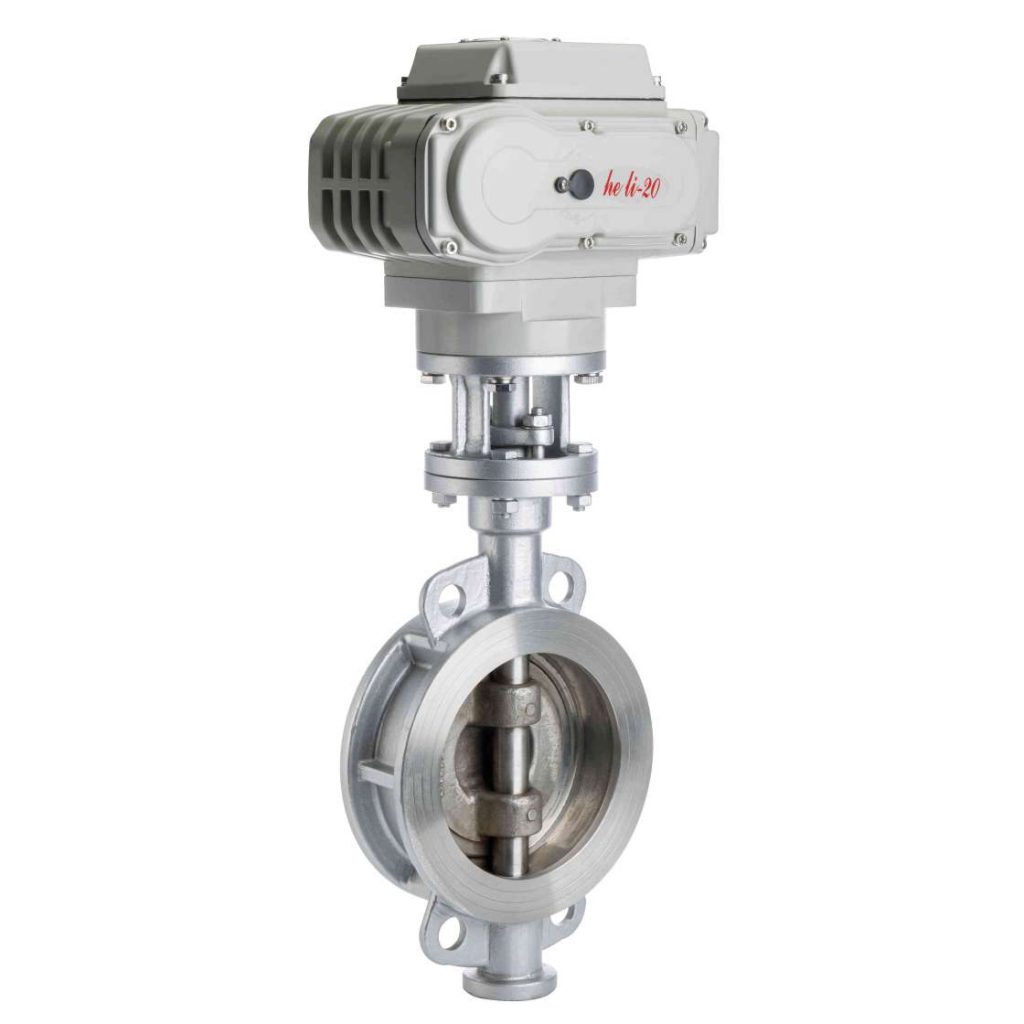

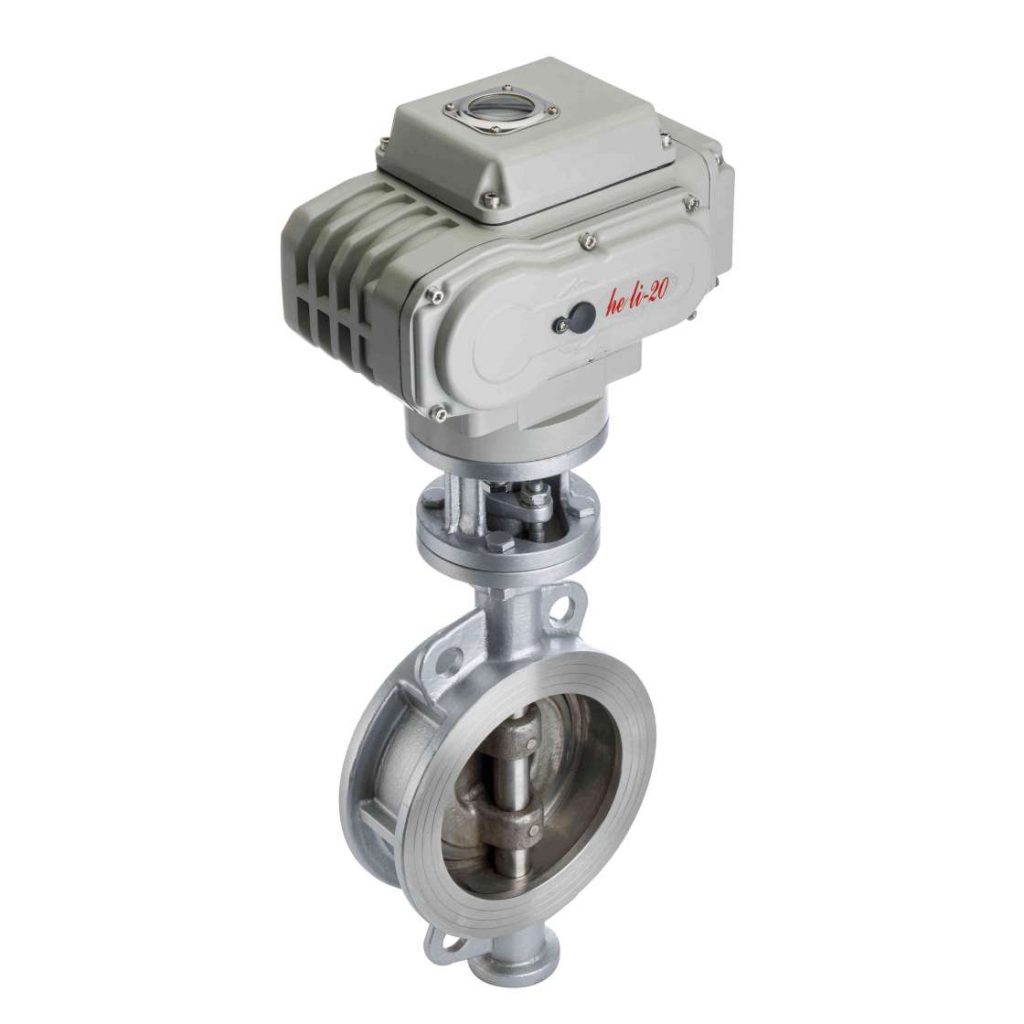

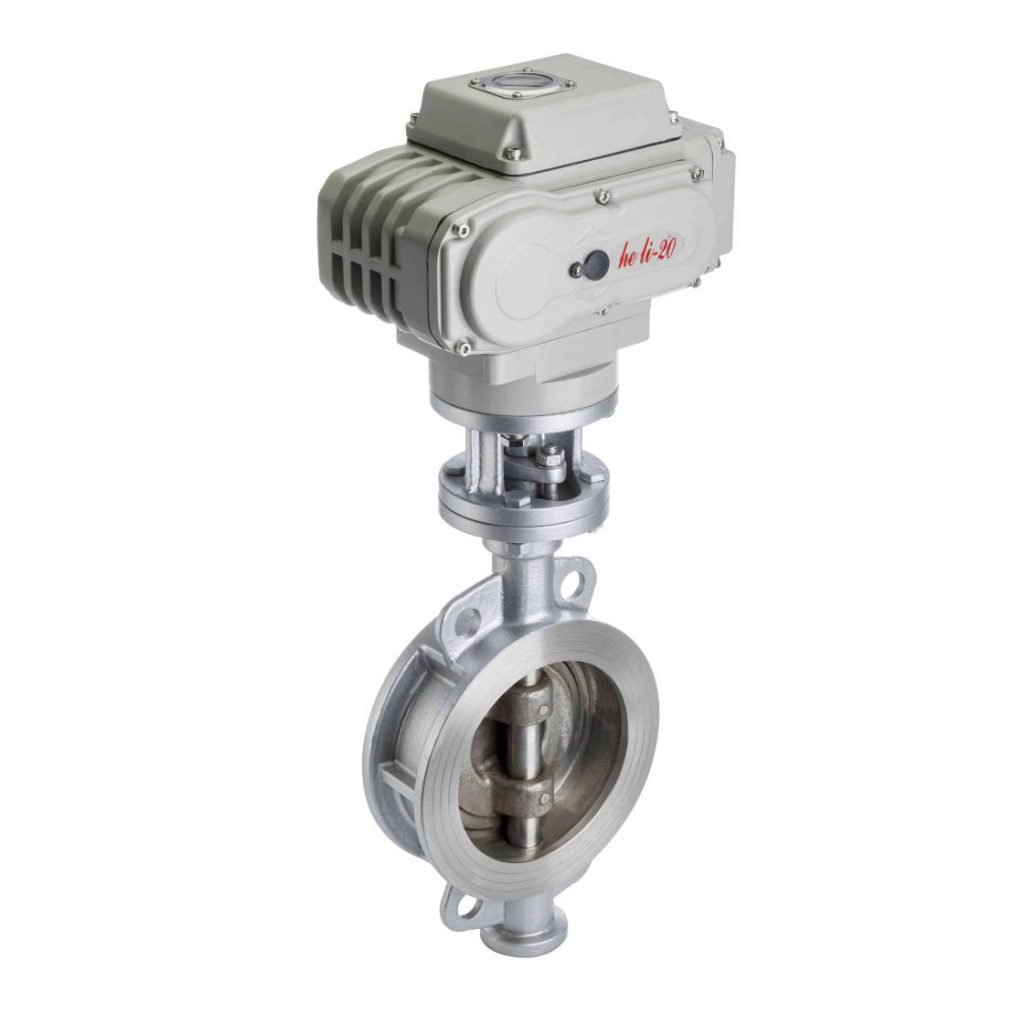

TheElectric Three Eccentric Butterfly Valveis an innovative solution in the realm of fluid control technology. These valves are characterized by their unique design, which provides several operational advantages in various industrial applications. This article delves into the structure, functioning, advantages, and applications of the electric three eccentric butterfly valve, highlighting its significance in modern engineering.
Structure and Design
The electric three eccentric butterfly valve comprises several key components that contribute to its effectiveness and reliability. The most distinctive feature of this valve is its eccentric design, which means that the valve disc is not centered on the valve body. Instead, it has three points of eccentricity: First Eccentricity: The shaft is positioned off-center in relation to the valve body. Second Eccentricity: The disc is offset from the shaft center. Third Eccentricity: The seating surface is not aligned with the valve centerline. This configuration allows for a more efficient sealing mechanism and reduces the wear on the sealing surfaces, significantly extending the lifespan of the valve. The valve is operated by an electric actuator, which can be controlled remotely or programmed to operate automatically, enhancing the convenience and precision of fluid flow management.
