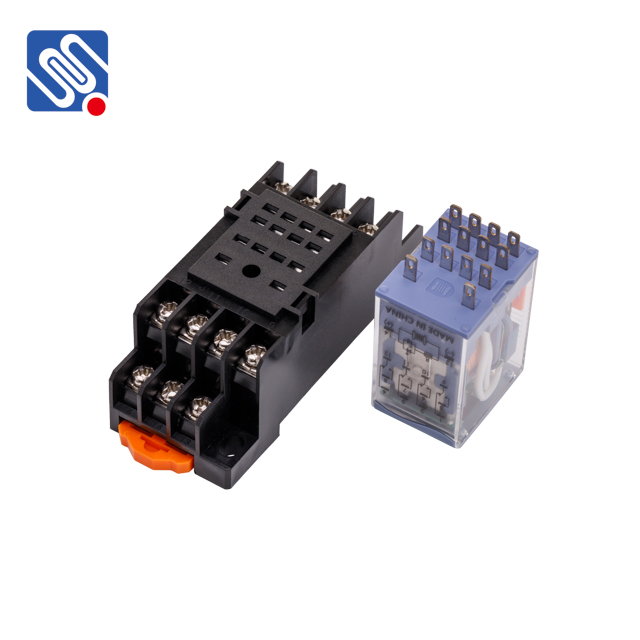

An electromagnetic relay is a fundamental electronic device used for controlling electrical circuits. It operates on the principle of electromagnetism to open or close the circuit contacts, thereby enabling the switching of high-power circuits by low-power signals. This device has found widespread applications in automation, safety systems, and telecommunications, making it essential in numerous modern electronic and electrical systems.
Working Principle of Electromagnetic Relay The core working principle of an electromagnetic relay is relatively simple. It consists of a coil, an iron core, a set of contacts, and a spring mechanism. The coil, when energized, generates a magnetic field that attracts the iron core. The movement of this core triggers the opening or closing of the contacts, depending on the relay’s configuration. Coil： The coil is the heart of the relay. When an electric current flows through the coil, it creates a magnetic field around the coil. The strength of the magnetic field depends on the amount of current passing through the coil.
