A Relay Control System is a fundamental component used in electrical and electronic systems to control circuits with an electrical signal. This system relies on the operation of relays, which act as switches that can be controlled remotely by a signal. Relay control systems are widely used in various industries, home automation, and even in simple everyday appliances due to their reliability, ease of use, and cost-effectiveness.

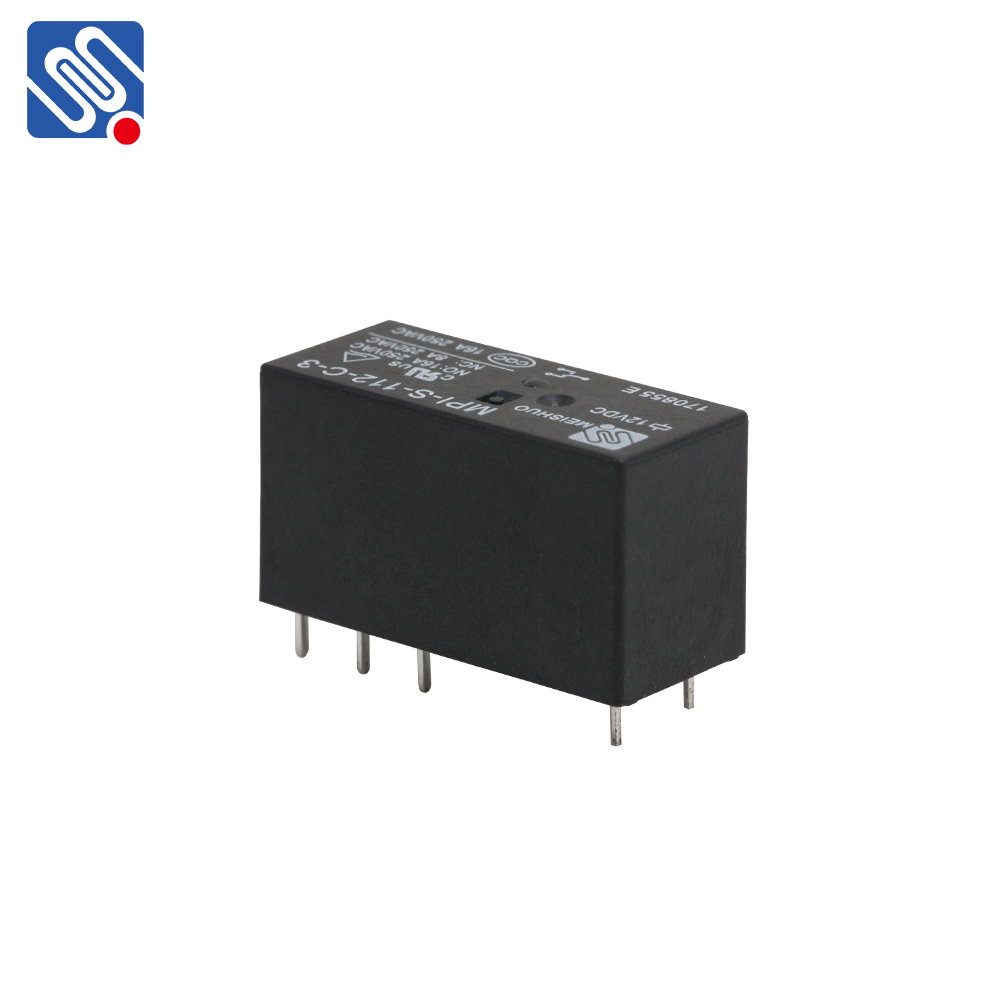

What is a Relay Control System? At its core, a relay control system is a method of controlling the flow of electricity in a circuit by using a relay. A relay is an electromechanical device that opens or closes a set of contacts in response to a control signal, typically low in power. The relay uses a magnetic field generated by an electrical current in its coil to physically move a contact, thereby controlling a high-power circuit with a low-power signal. Key Components of a Relay Control System A relay control system is composed of several key components： Control Input： This is usually a low-voltage signal that activates the relay. The input can come from a variety of sources, such as sensors, switches, or even programmable logic controllers (PLCs).
