An Electric Butterfly Valve is a type of valve designed to regulate fluid flow in various industrial systems. It uses an electric actuator to control the movement of the valve’s disc, offering an efficient solution for flow control. This article delves into the components, working principles, applications, benefits, and various types of electric butterfly valves, highlighting their importance in modern industrial automation.
What is an Electric Butterfly Valve?

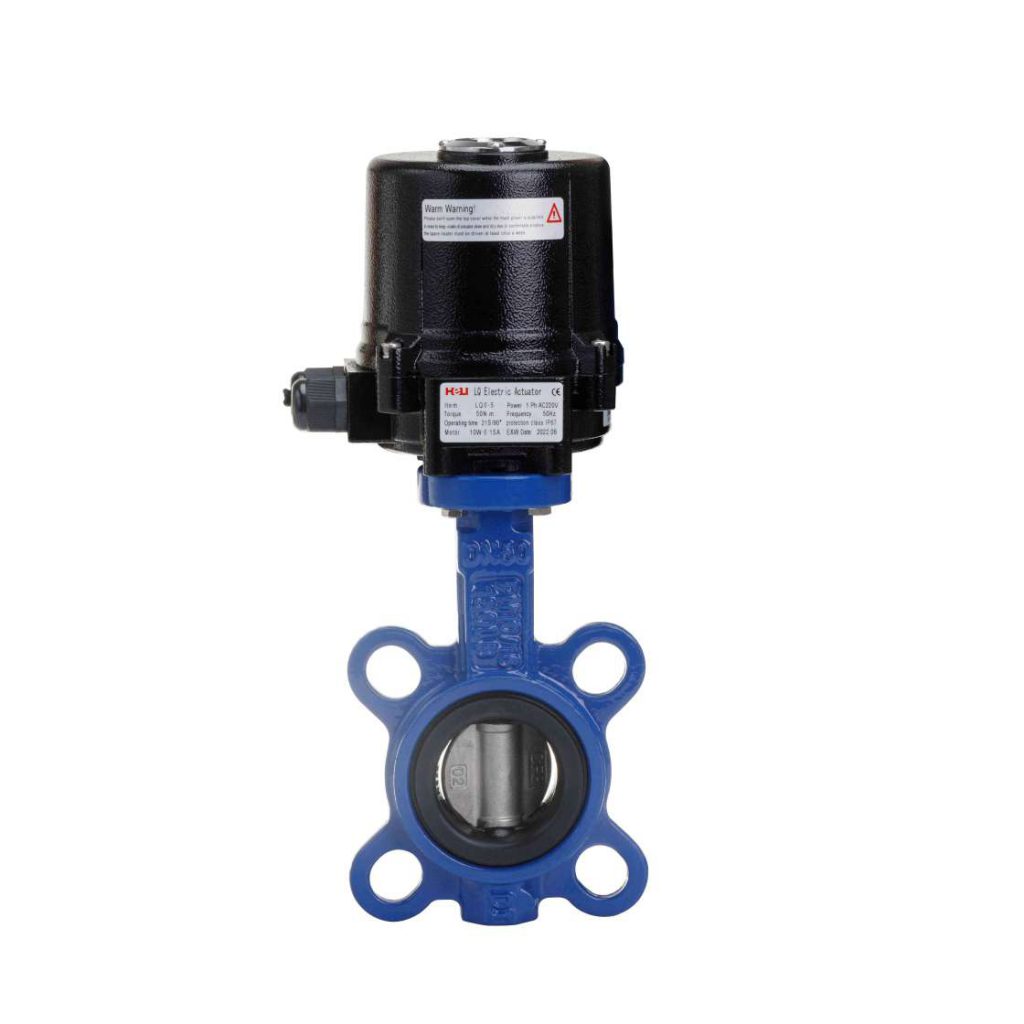

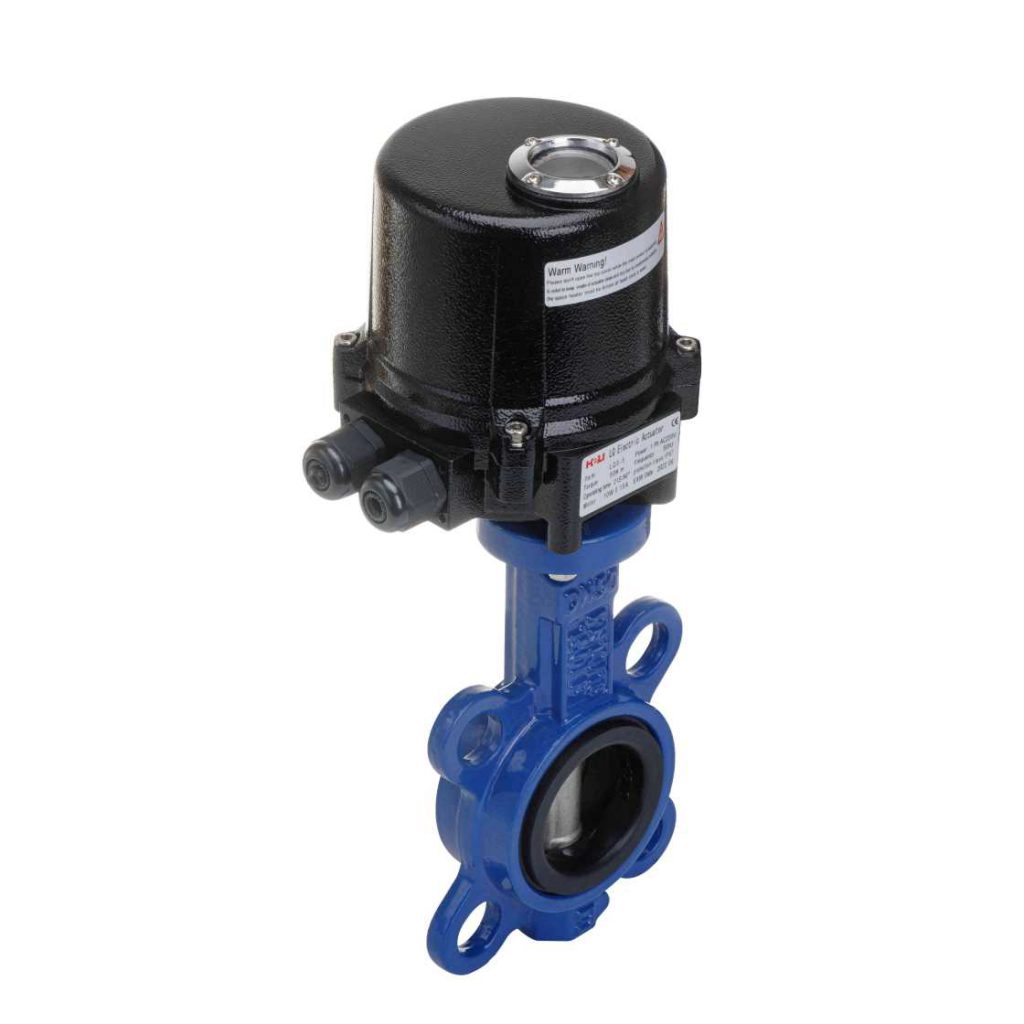

The electric butterfly valve combines the simplicity of a butterfly valve with the precision of electric actuators. It consists of a circular disc (the “butterfly”), which is attached to a shaft and rotates around an axis to control the flow of liquids or gases. The valve’s primary function is to regulate or shut off the flow by adjusting the angle of the disc. The electric actuator, powered by electricity, provides the force necessary to turn the disc, enabling precise control over the flow rate. Components of an Electric Butterfly Valve An electric butterfly valve consists of the following key components:
