In the realm of electrical engineering and electronics, relays play a crucial role in controlling circuits and devices. Among the various types of relays available, the 12V DC relay stands out for its versatility and wide-ranging applications. This article delves into the features, working principles, applications, and selection criteria for 12V DC relays, highlighting their significance in modern electrical systems.

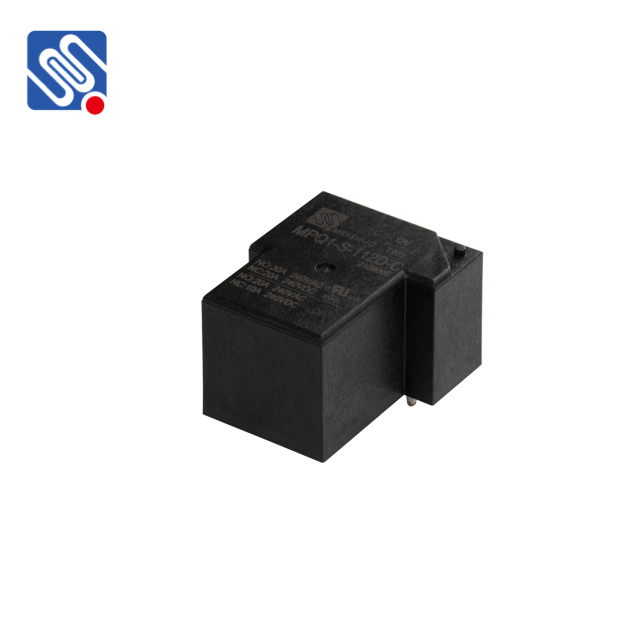

What is a 12V DC Relay? A 12V DC relay is an electromechanical switch that operates on a direct current (DC) voltage of 12 volts. It consists of an electromagnetic coil, which, when energized, creates a magnetic field that activates one or more sets of contacts to open or close the circuit. This ability to control high-power devices with a low-power signal makes relays indispensable in various applications. Working Principle The working principle of a 12V DC relay is based on electromagnetism. When a 12V DC voltage is applied to the coil, it generates a magnetic field that attracts a movable armature connected to one or more contacts. In its resting state, the normally closed (NC) contacts are connected while the normally open (NO) contacts are disconnected. When the coil is energized, the movable armature shifts position, closing the NO contacts and opening the NC contacts. This allows the relay to control a larger electrical load with a relatively small input signal, making it an essential component in control systems.
