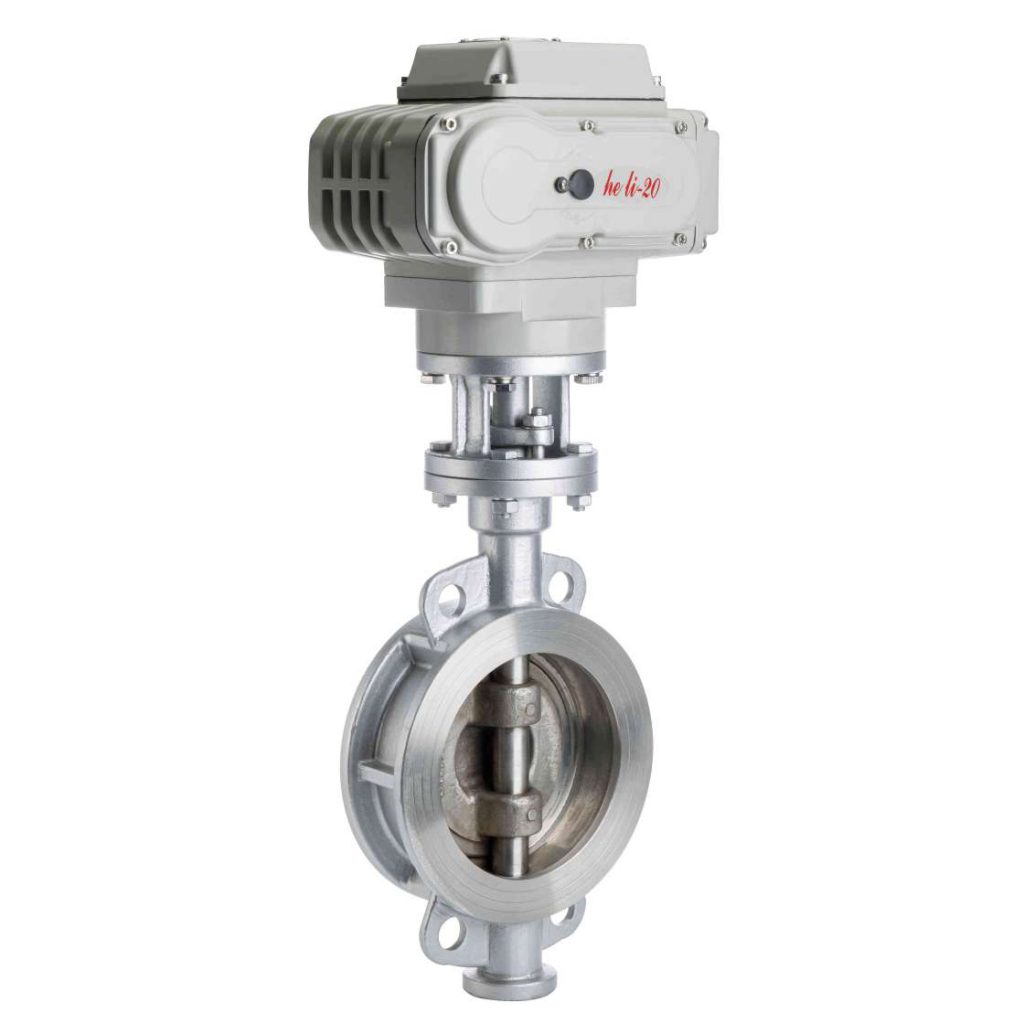

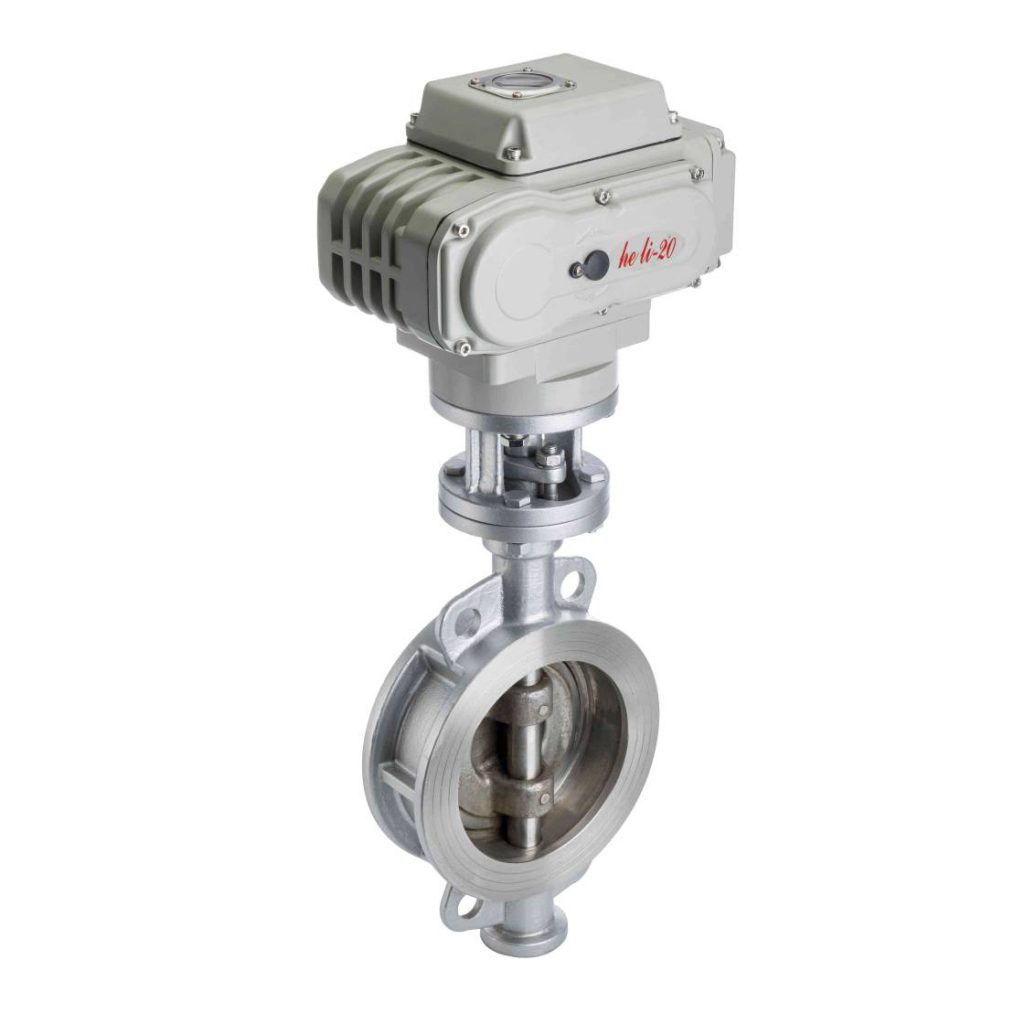

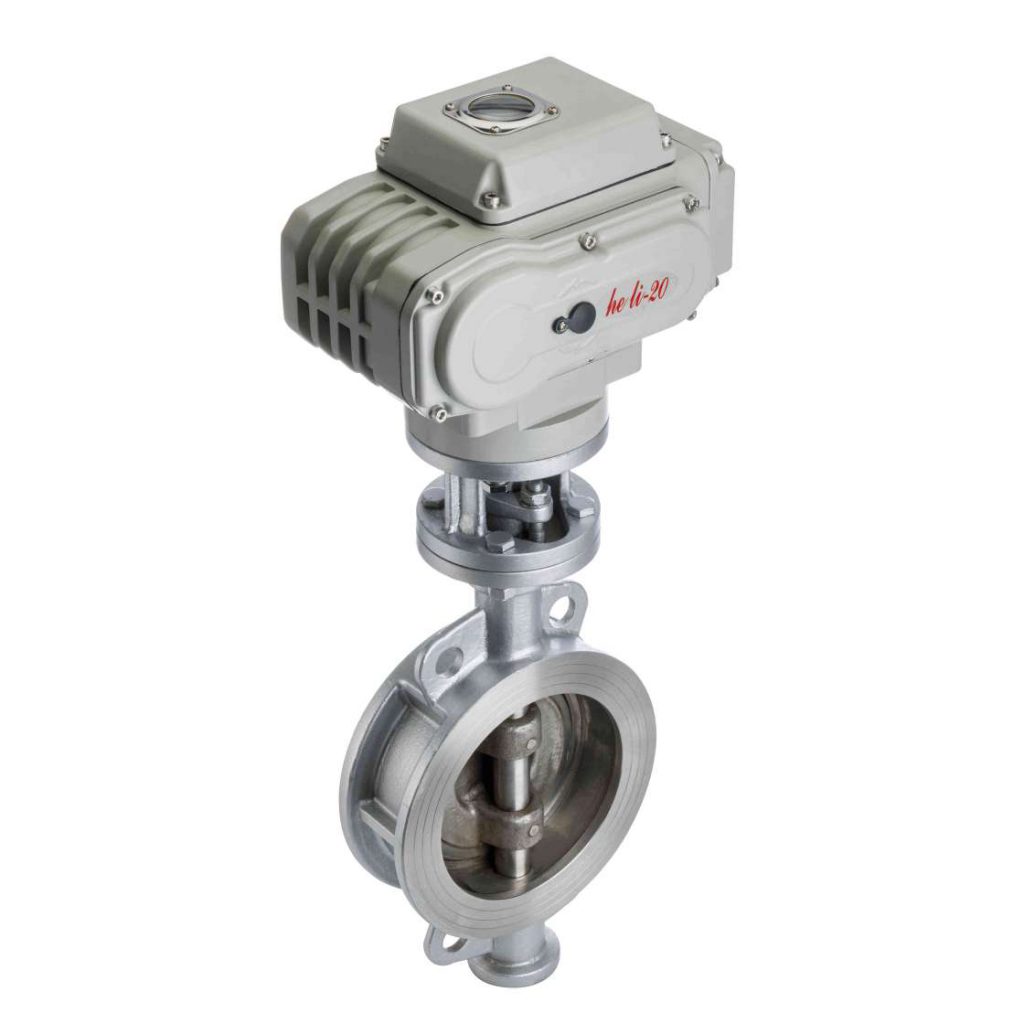

Electric three eccentric butterfly valves are essential components in modern fluid control systems, widely used in various industries such as water treatment, oil and gas, chemical processing, and HVAC systems. These valves are designed to provide excellent sealing performance, energy efficiency, and operational reliability. This article delves into the design features, operational principles, advantages, and applications of electric three eccentric butterfly valves.
Design Features
The electric three eccentric butterfly valve is characterized by its unique structure, which includes three eccentric features in its disc design. Unlike traditional butterfly valves, which typically have a single shaft, the three eccentric design allows for improved sealing and reduced wear. The valve consists of the following key components: Disc: The disc of the valve is mounted off-center to the shaft, allowing for a tighter seal as it rotates. The three eccentric positions refer to the shifting of the disc away from the valve seat in three stages, providing an effective seal while minimizing friction.
